Web Control SearchFilterCtl


Overview

This control is meant to show SearchFilter component. As for now, the system can only take “Equal to” operator. It does not accept “less than”, “greater than”, “not equal to”, etc.


For example;
Following screenshot shows the control:

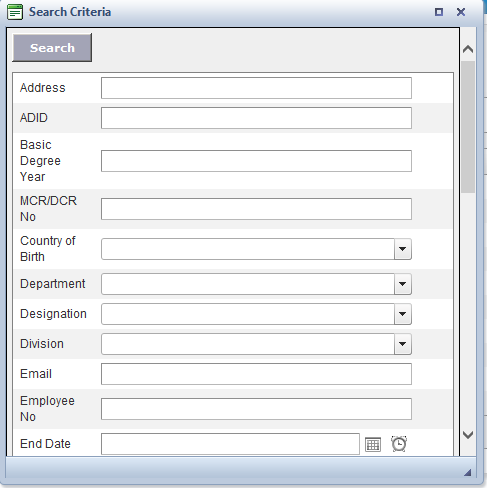

Clicking the Filter icon, system will pop up the Search criteria:

User can select the field, and enter value. Once done, User click Search button.
Upon clicking Search button, system will show:

Properties (cosmetic properties are excluded)

Following are important Properties:

Property Name

Type

Remark

ValidationGroup

String

Set the validation group of control

Input

List<SearchFilterCtlInput>

Whether to show or hide the upload button

Selected

List<SearchFilterCtlInput>

The list of selected Input. You can check this after the OnSearchClick event

Methods

Following are important methods:

Method Name

Type

Remark

Refresh()


To reload the data/display


Events

Following are important methods:

Method Name

Type

Remark

OnSearchClick


The call back, which triggered when someone click Search button on popup window


Class SearchFilterCtlInput

This class is used as input for this webcontrol.

Property Name

Type

Remark

PropertyName

String

The property name, which often the same as database field name, or object property

PropertyDisplayName

String

Friendly display name

PropertyConfig

String

This is the serialization of PropertyDefFieldCtl data. Read below to find out how system can show different control

Rank

Int

Which one should appear on top first

Text

string

The string version of value

Value

Object

The value of property. It can be any object. For example; Date object will be stored as DateTime, not string



Sample codes

Setup Component

Do this to register the event callback


Glenosoft.eCatalogManagerWebsite.UserControls.SearchFilterCtl search = SearchFilterCtl1 as Glenosoft.eCatalogManagerWebsite.UserControls.SearchFilterCtl;

            search.OnSearchClick += search_OnSearchClick;


Search_OnSearchClick event

You can check the selected fields, and load the data


void search_OnSearchClick(object sender, SearchFilterCtl_SearchClickEventArg e)

        {

            List<SearchFilterSelectedField> oList=e.Selected;


            loadData(true);

            loadSearchFilterBox();

        }

Load the data

You can check the selected fields, and load the data


private void loadSearchFilterBox()

        {

            List<SearchFilterCtlInput> oInputList=new List<SearchFilterCtlInput>();

            eCatalogManagerWebsite.UserControls.SearchFilterCtl ctl = SearchFilterCtl1 as eCatalogManagerWebsite.UserControls.SearchFilterCtl;

            ctl.ValidationGroup = "ReportFilter";


            List<ReportDefParam> list = this.AccountReportDef.Params.DataSource;

            list = list.Where(p=>p.Visible).OrderBy(p => p.Rank).ToList();


            List<SearchFilterSelectedField> listSelected= ctl.Selected;

            foreach (ReportDefParam oParam in list)

            {

                string strText = "";

                object objValue = null;

                var qery = from p in listSelected where p.PropertyName == oParam.ParameterName select p;

                SearchFilterSelectedField oExisting = qery.FirstOrDefault();

                if (oExisting != null)

                {

                    objValue = oExisting.Value;

                    strText = oExisting.Text;

                }

                oInputList.Add(new SearchFilterCtlInput(

                    oParam.ParameterName,

                    oParam.DisplayName,

                    oParam.PropertyInputConfig,

                    oParam.Rank,

                    strText,

                    objValue));

            }

            ctl.Input = oInputList;

            ctl.refresh();

        }

How does the system actually able to display/detect different kind of controls?

When the caller application uses the SearchFilterCtl, it needs to provide data to Input Property in a form of list of SearchFilterCtlInput property.

In the SearchFilterCtlInput object, it contains the Config property which contains the PropertyDefFieldCtl configuration data.


The PropertyDefFieldCtl is responsible to determine whether it should display dropdown, textbox, calendar, etc.


So, by passing his Config data, system knows what property this is, the type, the component, etc.


Please refer to PropertyDefFieldCtl for more information.

Another example on how to add manually

private void loadSearchCtl(

            Glenosoft.eCatalogManagerWebsite.UserControls.SearchFilterCtl SearchFilterCtl1,

            string Data)

        {

            SearchFilterCtl1.OnSearchClick += SearchFilterCtl1_OnSearchClick;


            List<SearchFilterCtlInput> ListInput = new List<SearchFilterCtlInput>();

            if (string.IsNullOrEmpty(Data))

            {

               #region declaration

            #region Employer

            {

                    PropertyDefControlConfig oConfig = new PropertyDefControlConfig_DropdownLookup

                    (typeof(CLIP_CompanyCollection), "CompanyID", "CompanyName"

                       );


                    SearchFilterCtlInput oInput = new SearchFilterCtlInput(

                        "Employer", "Employer", oConfig, 100, "", null);


                    ListInput.Add(oInput);

            }

            #endregion

            #endregion



            SearchFilterCtl1.Input = ListInput;

            SearchFilterCtl1.refresh();

        }



If it does not work…

This control does not work within the AjaxPanel. It won’t work in ajax. Remove the ajax if necessary.
