Component TokenWebInput

TokenWebInput Component

This control is meant to display field in TreeView or DropdownTree.

For example;

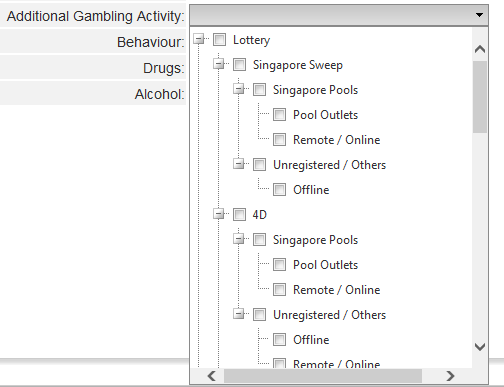

Following screenshot shows the control in DropdownTree format.

Following screenshot shows the control in Treeview format

Property Name	Type	Remark
Feature_AutoHideRemark	Bool	System will display or hide the remark by default. If the value is true, system will not show remark automatically, until user select the node.
RemarkInputType	enumTokenInputRemarkType	The type of input in remark. If it’s Inline, system will show the remark as part of the node. If it’s jQuery, system will show popup remark
AllowOptional	Bool	If optional is allowed, add blank token.
Autopostback	Bool	Trigger auto postback if there’s any change
UniqueGuid	String	Not in used?
UniqueName	String	Not in used?
ControlType	enumTokenInputWebControlType	Set whether it is TreeView or DropdownTree
Mode	enumTokenInputWebControlMode	View or Edit mode.
AllowCheckbox	Bool	If it’s true, system will display checkbox
AllowMultiSelect	Bool	If it’s true, system allow user to multi-select node
AllExpand	Bool	If it’s true, system will automatically expand all the tree nodes
CheckChildNodes	Bool	If it’s true, system will automatically check all child nodes when parent is checked
TriStateCheckbox	Bool	Whether to enable TriState
CloseOnDropdown	Bool	Whether to automatically close when selecting dropdown

Method Name	Type	Remark
Refresh	Void	To reload the data, and refresh the control
getSingleSelectedValue	Int?	If the control accept only one selected node, call this function to get the selected value. If control has multiple selection, system will only get the very first selected node
getSingleSelectedToken	AccountToken	Same as getSingleSelectedValue, but it return AccountToken instead
getSelectedText	String	Get all selected tokens, and display in comma separated value. If the includePath Is true, system will display the text in full path such as “Parent Token>Token 1>Token2>token3”
getSelectedRemark	String	Get all selected tokens, and get all the remarks
getTreeByGUID_fromCache	List<AccountToken>	Get the list of child tokens based on parent GUID
getTreeByName_fromCache	List<AccontToken>	Get the list of child tokens based on parent unique name
getSelectedTokensFromInput	List<AccountToken>	Get all selected token and remarks from the current input controls. Use this before saving the record.
getSelectedNodes	IList<RadTreeNode>	Get the selected nodes

In this example, the control is set to DropdownTree (combobox) and assign the Parent Token

//Assign the parent token

ctlGamblingActivities.UniqueGUID = “c4460e37-40ec-4a62-89e5-e58ea7aeb3ca”;

// set the control type

ctlGamblingActivities.ControlType = enumTokenInputWebControlType.TreeCombobox;

// show checkbox

ctlGamblingActiities.AllowCheckbox = true;

// set multi selection

ctlGamblingActivities.AllowMultiSelect = true;

// render the control

ctlGamblingActivities.Refresh()

private List<AccountToken> getSelectedValueFromTiwc(UserControl source)

{

List<AccountToken> result = null;

TokenInputWebControl tiwcInput = source as TokenInputWebControl;

result = tiwcInput.getSelectedTokensFromInput();

return result;

}

List<AccountToken> selectedTokens = new List<AccountToken>();

selectedTokens.AddRange(getSelectedValueFromTiwc(tiwcReferralType));

// You will need to keep the Selected Tokens

// the getSelectedTokensFromInput() will return ALL the tokens, including the parent of selected Token.

// store this Selected Tokens information to database

List<AccountToken> selected = TokenInputWebControl.getSelectedTokensFromInput();

string strSelected = selected.Where(p => p.Selected).ToList().Select(p => p.TokenID.ToString()).ToList().toCommaSeparatedValues();

Record.Selected=strSelected; // save it somewhere in record

// assuming the strSelected is the CSV we retrieve from database

TokenInputWebControl tiwcCtlHelplineType = tiwcControl(tiwcHelplineType_Source);

tiwcCtlHelplineType.Selected = strSelected; // only selected ones (no parent)

tiwcCtlHelplineType.SelectedTokens = SelectedTokens; //including parents

tiwcCtlHelplineType.Refresh();
